Prometheus 是一个开源的系统监控和警报工具包，最初由 SoundCloud 开发。自 2012 年诞生以来，许多公司和组织都采用了 Prometheus，该项目拥有非常活跃的开发者和用户社区。如今，它已成为一个独立的开源项目，并且不受任何公司的控制。为了强调这一点，并明确项目的治理结构，Prometheus 于 2016 年加入云原生计算基金会，成为继 Kubernetes 之后的第二个托管项目。

今天我们来看看如何在k8s中安装prometheus监控，同时部署node-expoter采集节点资源信息和利用率，以及GPU信息的采集组件dcgm-exporter，我部署的版本均使用的次新版本，版本如下

prometheus: v3.4.2

node-expoter: v1.9.0

dcgm-exporter: 3.3.9-3.6.1-ubuntu22.04

1.部署prometheus服务器

1.1.服务发现配置

首先我们先创建配置文件prometheus-config.yaml，这个文件包含了服务自动发现的功能

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    app: prometheus
  name: prometheus-config
  namespace: monitoring
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      scrape_timeout: 10s
      evaluation_interval: 1m
    scrape_configs:
    - job_name: 'node-exporter'
      kubernetes_sd_configs:
      - role: node
      relabel_configs:
      - source_labels: [__address__]
        regex: '(.*):10250'
        replacement: '${1}:9100'
        target_label: __address__
        action: replace
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
    - job_name: 'dcgm-exporter'
      kubernetes_sd_configs:
      - role: node
      relabel_configs:
      - source_labels: [__address__]
        regex: '(.*):10250'
        replacement: '${1}:9400'
        target_label: __address__
        action: replace
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
    - job_name: 'kubernetes-node-cadvisor'
      kubernetes_sd_configs:
      - role:  node
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor
    - job_name: 'kubernetes-apiserver'
      kubernetes_sd_configs:
      - role: endpoints
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
        action: keep
        regex: default;kubernetes;https
    - job_name: 'kubernetes-service-endpoints'
      kubernetes_sd_configs:
      - role: endpoints
      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        action: replace
        target_label: kubernetes_name

然后提交配置

kubectl apply -f prometheus-config.yaml

1.2.部署prometheus服务

prometheus服务的配置文件prometheus-deploy.yaml内容如下

apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-server
  namespace: monitoring
  labels:
    app: prometheus
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
      component: server
    #matchExpressions:
    #- {key: app, operator: In, values: [prometheus]}
    #- {key: component, operator: In, values: [server]}
  template:
    metadata:
      labels:
        app: prometheus
        component: server
      annotations:
        prometheus.io/scrape: 'false'
    spec:
      serviceAccountName: prometheus
      containers:
      - name: prometheus
        image: docker.io/prom/prometheus:v3.4.2
        imagePullPolicy: IfNotPresent
        command:
          - prometheus
          - --config.file=/etc/prometheus/prometheus.yml
          - --storage.tsdb.path=/prometheus
          - --storage.tsdb.retention.time=720h
          - --web.enable-lifecycle
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/prometheus
          name: prometheus-config
        - mountPath: /prometheus/
          name: prometheus-storage-volume
      volumes:
        - name: prometheus-config
          configMap:
            name: prometheus-config
        - name: prometheus-storage-volume
          hostPath:
           path: /data/prometheus
           type: Directory

然后提交配置

kubectl apply -f prometheus-deploy.yaml

1.3.部署prometheus访问策略svc

svc策略的配置文件prometheus-svc.yaml内容如下

apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: monitoring
  labels:
    app: prometheus
spec:
  type: NodePort
  ports:
    - port: 9090
      targetPort: 9090
      nodePort: 30090
      protocol: TCP
  selector:
    app: prometheus
    component: server

然后提交配置

kubectl prometheus-svc.yaml

2.部署node-exporter采集节点信息

我已经编辑正好了node-export.yaml文件，

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: node-exporter
  namespace: monitoring
  labels:
    name: node-exporter
spec:
  selector:
    matchLabels:
     name: node-exporter
  template:
    metadata:
      labels:
        name: node-exporter
    spec:
      hostPID: true
      hostIPC: true
      hostNetwork: true
      containers:
      - name: node-exporter
        image: docker.io/prom/node-exporter:v1.9.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9100
        securityContext:
          privileged: true
        args:
        - --path.procfs
        - /host/proc
        - --path.sysfs
        - /host/sys
        - --path.udev.data=/rootfs/run/udev/data
        - --collector.filesystem.mount-points-exclude
        - '"^/(sys|proc|dev|host|etc)($|/)"'
        volumeMounts:
        - name: dev
          mountPath: /host/dev
        - name: proc
          mountPath: /host/proc
        - name: sys
          mountPath: /host/sys
        - name: rootfs
          mountPath: /rootfs
      tolerations:
      - key: "node-role.kubernetes.io/master"
        operator: "Exists"
        effect: "NoSchedule"
      volumes:
        - name: proc
          hostPath:
            path: /proc
        - name: dev
          hostPath:
            path: /dev
        - name: sys
          hostPath:
            path: /sys
        - name: rootfs
          hostPath:
            path: /

直接提交即可

kubectl apply -f node-export.yaml

3.部署dcgm-exporter采集GPU信息

我也直接编辑好了dcgm-export.yaml文件

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: dcgm-exporter
  namespace: monitoring
  labels:
    app: dcgm-exporter
spec:
  selector:
    matchLabels:
      app: dcgm-exporter
  template:
    metadata:
      labels:
        app: dcgm-exporter
    spec:
      hostPID: true
      hostIPC: true
      hostNetwork: true
      tolerations:
      - key: nvidia.com/gpu
        operator: Exists
        effect: NoSchedule
      containers:
      - image: nvcr.io/nvidia/k8s/dcgm-exporter:3.3.9-3.6.1-ubuntu22.04
	imagePullPolicy: IfNotPresent
        env:
        - name: "DCGM_EXPORTER_LISTEN"
          value: ":9400"
        - name: "DCGM_EXPORTER_KUBERNETES"
          value: "true"
        name: "dcgm-exporter"
        ports:
        - name: "metrics"
          containerPort: 9400
        securityContext:
          runAsNonRoot: false
          runAsUser: 0
        volumeMounts:
        - name: "pod-gpu-resources"
          readOnly: true
          mountPath: "/var/lib/kubelet/pod-resources"
      volumes:
      - name: "pod-gpu-resources"
        hostPath:
          path: "/var/lib/kubelet/pod-resources"

直接提交即可

kubectl apply -f dcgm-export.yaml

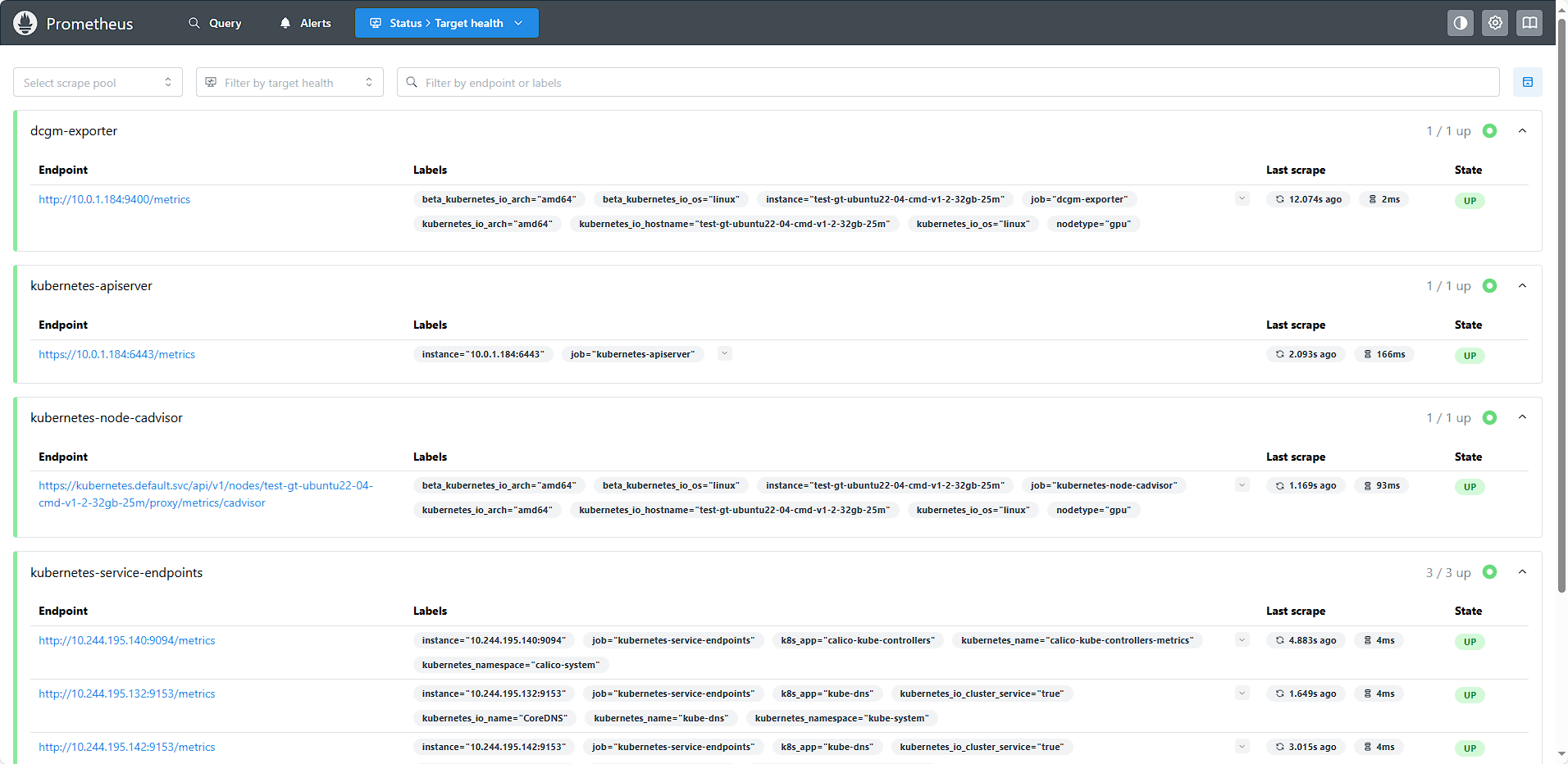

最后prometheus展示效果如下
